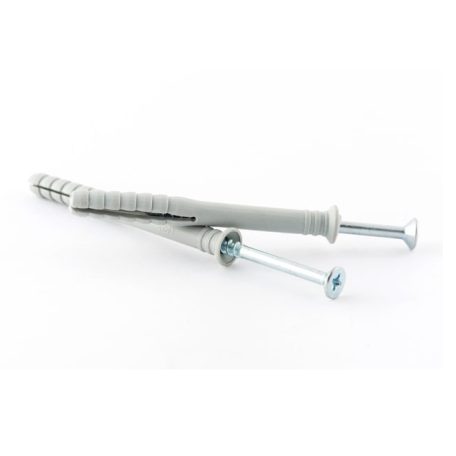

Nail anchor with drop collar 6x60 mm

Time efficient

Pre-assembled

Impact protection

Simple disassembly

Special rib profile

Details

Description

Nail anchors with drop collars are usually used for fastening battens, panels, strips, etc. with a flush fir in the component. It is a prefabricated system, consisting of a dowel and a screw nail that enables fast series assembly. The impact protection ensures the highest level of assembly security and prevents pre-expansion. The flush fit of the scew nail ensures optimal coordination between the nail and dowel. The special rib profile ensures high pull-out values. The Phillip recess and nail screw thread enable the screw to be unscrewed for subsequent dismantling. Its high-quality industrial nylon ensures high kink resistance and resistance to weather, aging, rotting and chemical influences.

Specifications

Material Polyamide and galvanized steel
Dimensions 6x60 mm
Max. usable lenght 30 mm
Borehole diameter 6 mm
Min. embedment depht 30 mm
Unidad PC 2
Info
Article No.
402206060001
Weight
5 g/pcs
Quantity options
1 pcs, 101 pcs, 201 pcs, 301 pcs, ...
