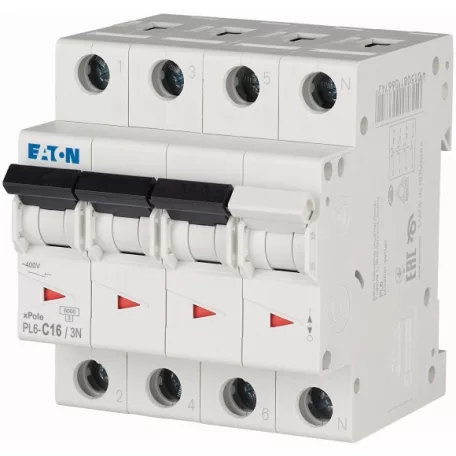

Eaton Moeller series xPole - PL6-C16/3N MCB. Miniature circuit breaker (MCB) PL6, 3-pole+N, tripping characteristic: C, rated current In: 16 A, rated switching capacity IEC/EN 60898-1: 6 kA.
General characteristics:
• High-quality miniature circuit breakers for commercial and residential applications
• Selectivity Class: 3
• High selectivity between MCB and back-up fuse due to low let-through energy
• Contact position indicator red – green
• Tripping characteristic: C
• Rated breaking capacity 6 kA according to IEC/EN 60898-1
• Suitable for applications up to 48 V DC (per pole, max. 2 poles)
• Meets the requirements of insulation co-ordination, distance between contacts ≥ 4 mm, for secure isolation
• Compatible with standard busbar
• Twin-purpose terminal (lift/open-mouthed) above and below
• Busbar positioning optionally above or below
• Guide for secure terminal connection
• 3-position DIN rail clip, permits removal from existing busbar system
• Comprehensive range of accessories can be mounted subsequently
• Switch lever in colour according to rated current
