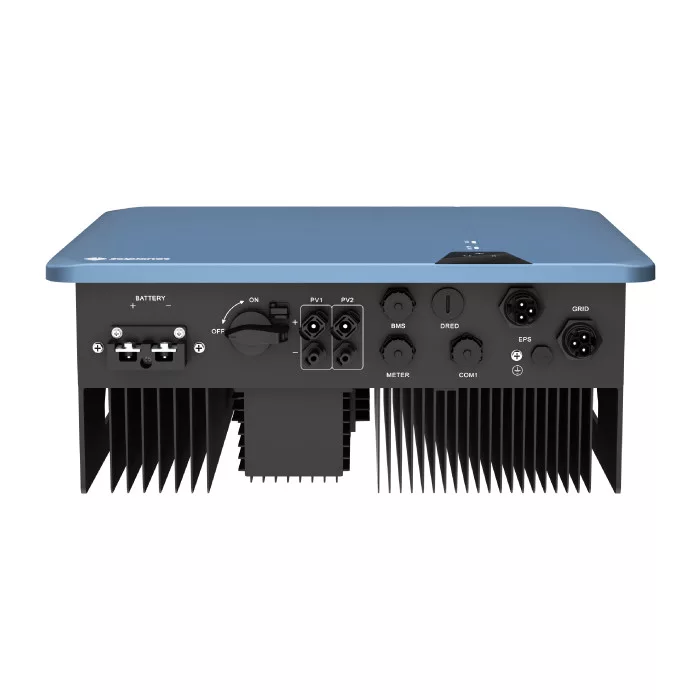

Solplanet ASW5000H-S2 AFCI 5kW Single-Phase Hybrid Inverter

The Solplanet ASW5000H-S2 AFCI is a high-performance 5kW single-phase hybrid inverter designed for residential solar PV systems, solar battery storage, self-consumption and backup power. With 7500Wp maximum PV array power, 2 independent MPPT inputs, 40–530V MPPT voltage range and 16A input current per MPPT, it supports flexible rooftop solar panel layouts and efficient energy harvesting. The inverter works with 48V low-voltage batteries and provides up to 5000W charging and discharging power, making it ideal for complete solar kits and energy storage systems. Its integrated EMS optimizes PV production, battery charging, grid import/export and EPS backup operation. The EPS output delivers up to 5000VA with 10ms switching time, helping protect essential household loads during grid failure. With IP66 protection, WiFi monitoring, smart meter zero-export control, low-noise convection cooling and indoor/outdoor installation support, the ASW5000H-S2 is a reliable solar inverter for installers, solar distributors and residential PV projects.

AFCI (Arc Fault Circuit Interrupter) in solar inverters is a safety function that detects dangerous DC arc faults and shuts down or disconnects the system to reduce fire risk.
