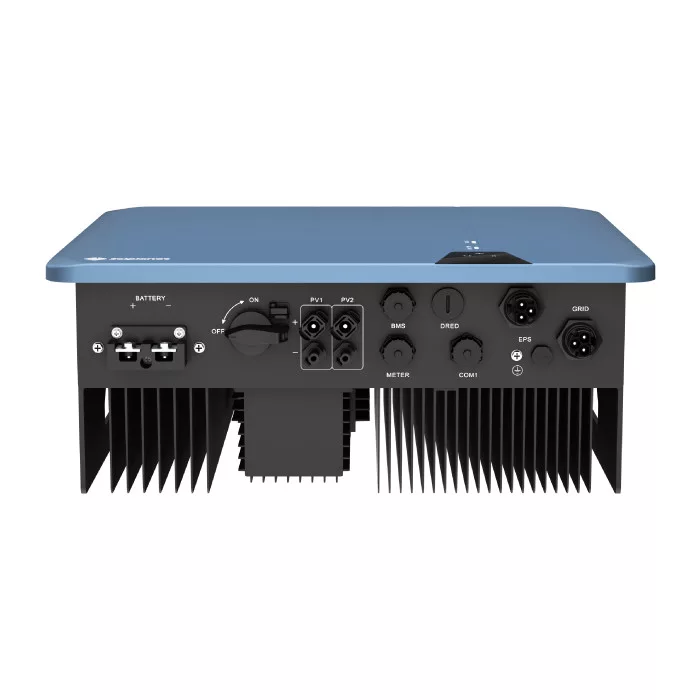

Solplanet ASW3680H-S2 AFCI 3.68kW Single-Phase Hybrid Inverter

The Solplanet ASW3680H-S2 AFCI is a reliable 3.68kW single-phase hybrid inverter designed for residential solar PV systems with battery storage, self-consumption optimisation and backup power. With 6180Wp maximum PV array power, 2 independent MPPT inputs, 40–530V MPPT voltage range and 16A input current per MPPT, it supports flexible rooftop layouts and modern high-output solar panels. The inverter works with 48V low-voltage batteries, offering up to 5000W charging and discharging power for efficient energy storage. Its integrated EMS manages PV generation, battery use, grid import/export and backup operation, helping users increase self-consumption and reduce grid dependence. The EPS output provides up to 5000VA backup power with a fast 10ms switching time, making it suitable for essential household loads. With IP66 protection, WiFi monitoring, smart meter zero-export control, low-noise convection cooling and indoor/outdoor installation support, the ASW3680H-S2 is a strong choice for solar installers, solar distributors and complete solar kits.

AFCI (Arc Fault Circuit Interrupter) in solar inverters is a safety function that detects dangerous DC arc faults and shuts down or disconnects the system to reduce fire risk.
