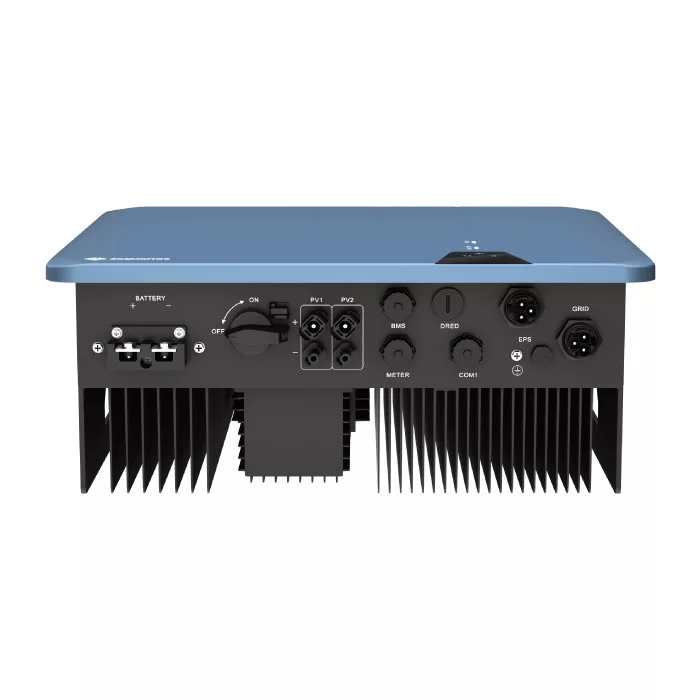

Solplanet ASW3000H-S2 AFCI 3kW Single-Phase Hybrid Inverter

The Solplanet ASW3000H-S2 AFCI is a compact 3kW single-phase hybrid inverter designed for residential solar PV systems, solar battery integration, and complete solar kits. Built for professional solar installers, solar distributors, and solar PV suppliers, this inverter converts solar energy into usable AC power while storing surplus energy in a compatible 48V low-voltage battery. The system supports 5500Wp maximum PV array power, 550V maximum DC input, a wide 40–530V MPPT voltage range, and 2 independent MPPT inputs, making it suitable for flexible rooftop solar panel layouts. For energy storage, it provides 5000W charging and discharging power with up to 100A battery current. The inverter also includes EPS backup output up to 5000VA, 7500VA peak power for 10 seconds, and fast 10ms switching, helping maintain essential loads during grid failure. With IP66 protection, WiFi monitoring, smart meter zero-export control, integrated safety protections, and quiet convection cooling under 25dB, the ASW3000H-S2 is a reliable solar inverter for modern residential energy storage systems.

AFCI (Arc Fault Circuit Interrupter) in solar inverters is a safety function that detects dangerous DC arc faults and shuts down or disconnects the system to reduce fire risk.
