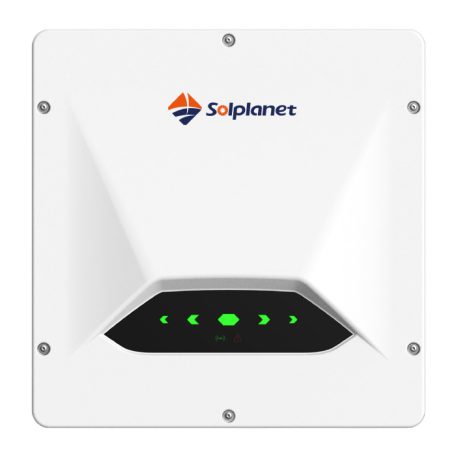

Solplanet ASW15K-LT Three Phase Inverter

The ASW LT series

The strong but still compact ASW LT series consists of three-phase, easy-to install, reliable and userfriendly inverters.

These compact inverters come with our wall-mount and SUNCLIX connection that makes the series easy-to-install without opening the lid. This series has an extensive warranty and built-in DC/AC switch. Easy to connect, monitor and gives great performance whether it is installed indoors or outdoors. It is an optimal choice for small and medium size commercial facilities.

Main properties

Compact

• Our ASW LT series has compact size (490 x 497 x 212 mm) and medium weight (26 kg)
• The series comes with IP65 protection class, waterproof, and has less than 1W power consumption during night-time

Wide Selection

• Input voltage: min. 150 V, max. 1000 V, initial feed-in voltage: 188V
• This series provides between 19500 and 26000 Wp STC input performance for PV systems
• Diverse series: 2 MPP inputs / string for each MPPT input
• Output (AC) nominal power range: 15000 or 20000 W
• Output (AC) nominal voltage range: 220/380 V, 230/400 V, or 240/415 V

Easy to install

• Due to our wall-mount system the inverter could be installed with normal tools without opening the lid
• The cables could be connected with SUNCLIX (Phoenix Contact) DC plugs and could be plugged with AC plugs
• The inverter and the application can be connected with the plug and play like Wi-Fi module (accessory) or 4G module (could be ordered) to ensure an easy monitoring process
