Description

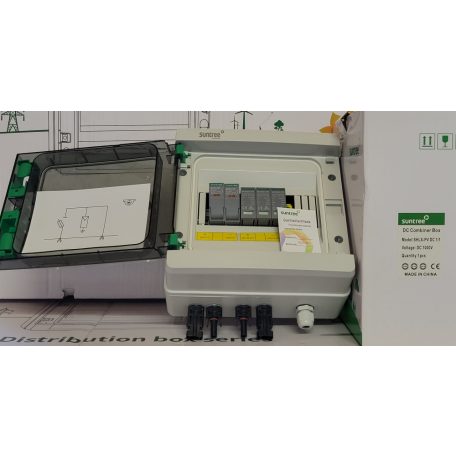

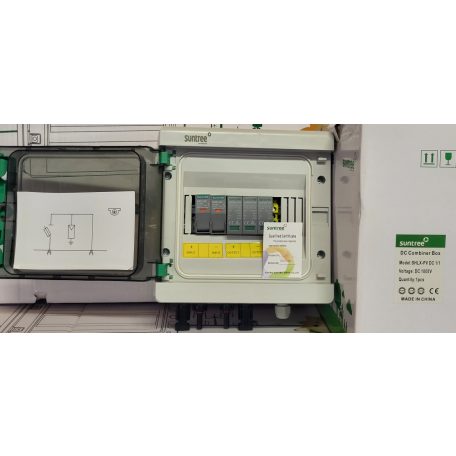

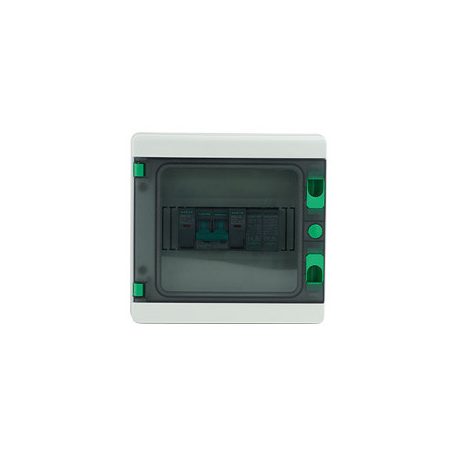

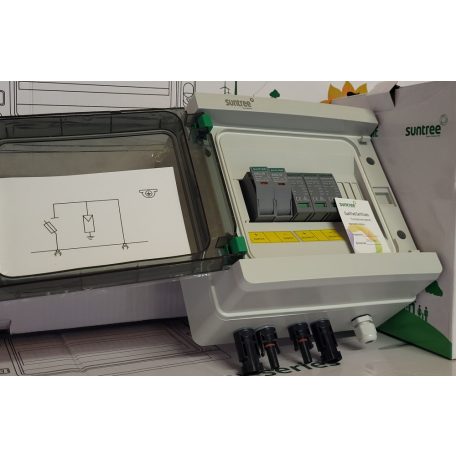

SHLX - PV1/1 combiner box is suitable for inverter (MAX input voltage DC550V/DC1000V, 1 PV input channel, 1 output channel, single MPPT inverter). Box body is made of PVC engineering ma ter ials. with test forfire retardant. temperature rise, anti impact. anti ultraviolet, and other testing. IP65 protection grade.
Design and configurati on strictly accordance with the "Technical specification for photovoltaic junction equipment ” CGC/GF 037:2014. Provide users with a safe, brief, beautiful and applicable photovoltaic system products.
Electrical Technical Reference
|
SHLX-PV
|
|
System maximum dc voltage
|
DC 550V
|
DC 1000V
|
|
Maximum input current for each string
|
15A
|
|
Maximum input strings
|
1
|
|
Maximum output switch current
|
50A/63A
|
|
Number of inverter MPPT
|
1
|
|
Number of Output strings
|
1
|
|
DC SURGE PROTECTOR
|
|
Surge Protection Device
|
SUP2H-PV T2 1000VDC
|
|
Voltage
|
Ue=DC1500v Ue=DC1200v Ue=DC 1000V Ue=DC500V and below
|
|
Maximum instantaneous discharge current
|
In=20KA/40KA
|
|
Pole
|
2P 3P
|
|
Certification
|
CE TUV
|
|
DC FUSE HOLDER
|
|
Fuse Holder Device
|
SDR-30
|
|
Voltage
|
Ue=DC1100v
|
|
Current
|
In=1A In=3A In=5A In=6A In= 10A In=16A In=20A In=25A In=30A
|
|
Pole
|
1P
|
|
Certification
|
CE CB TUV SAA
|
|
DC FUSE
|
|
Voltage
|
Ue=DC1100v
|
|
Current
|
In=1A In=3A In=5A In=6A In= 10A In=16A In=20A In=25A In=30A
|
|
Specification
|
10*38mm
|
|
Certification
|
CB CE TUV
|
