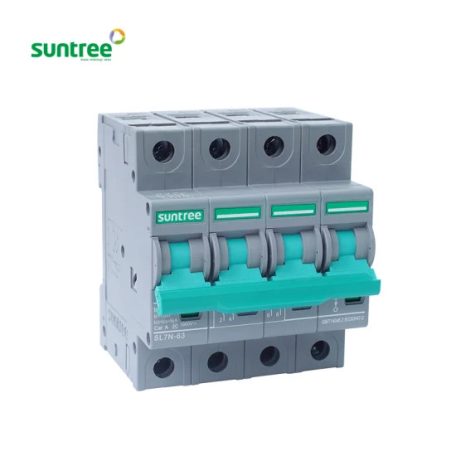

SUNTREE DC Circuit Breaker 4P 1000VDC
Key features:
Short circuit protection, overload protection
High breaking capacity, up to 6kA
No positive and negative poles, can be reversed, easy to connect
Rated working current to 63A
Opening distance>9mm, quickly cut off the arc
Labyrinth arc interrupter
U-shaped magnetic blowing structure, improve the ability of disaster arc
7 rivets ensure wiring reliability
Busbar design, reliable and beautiful wiring
Unique shape design
Details
In stock
Please log in or register to see our prices!
Please log in
Details
ELECTRICAL TECHNICAL REFERENCE
SL7N-63
Rated insulation voltage (Ui)
1250V
Rated service voltage (Ue)
DC(4P):800V,1000V 1200V
Rated current of current shell frame
63A
Different currents In the same current shell frame
6A、10A、 16A、 20A、 25A、32A、 40A、 50A、 63A
Rated service short-circuit breaking capacity Ics=Icu
lcs=Icu=6kA(2P800V/4P1200V Ics=Icu=2KA)
Mechanical life
8500 Times
Electrical life
1500 Times (< DC125V/1P, < DC250V/2P)
1000 times (other voltage specifications)
Certificate
Rated impulse withstand voltage Uimp
6kV
Trip characteristics I trip type
B/C
Overvoltage category
Ⅲ
Class of pollution
3
Ingress protection
IP40; terminal IP20
Resistance to heat and humidity
Class 2
Relative humidity
≤95%
Standards compliant
IEC 60947-2 GB/T 14048.2
Shock resistance
According to IEC60068-2-6
Mechanical shock resistance parameters
According to IEC60068-2-27
Service ambient temperature
-30℃~70℃
IEC60068-4Resistance to heat and humidity(IEC60068-4)
Class Db (temperature 55℃ 6 cycles)
Storage ambient temperature
-40℃~85℃
Altitude
≤2000m
Weight accessories
0.12kg/P
Accessories
OFISD/MX/MN/MX+OF
MX control voltage Us
DC:12V,24V,220V; AC:110V,220V,380V power supply recommended not less than 75W
MN rated voltage Un
AC220V AC380V
Info
Manufacturer
Suntree
Number of Poles
4
Nominal Current
63 A
Nominal Voltage
1000 V
Article No.
401502025302
Weight
120 g/pcs
