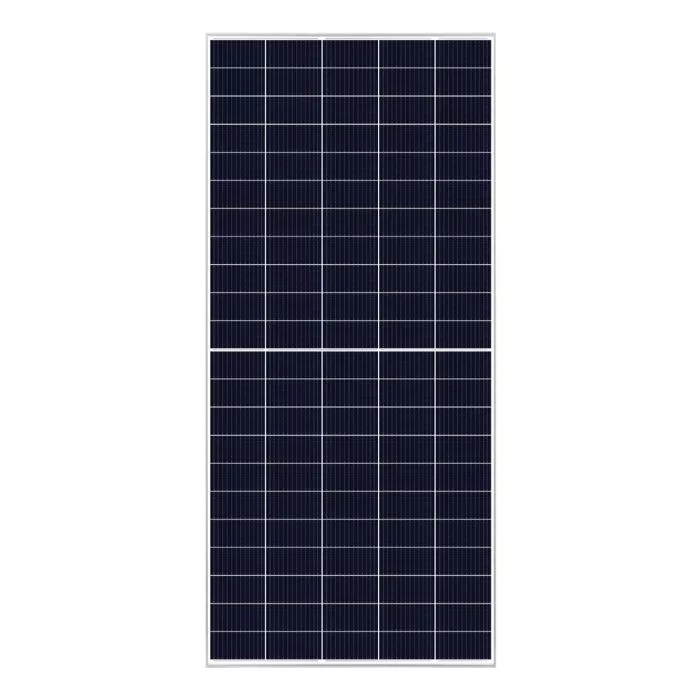

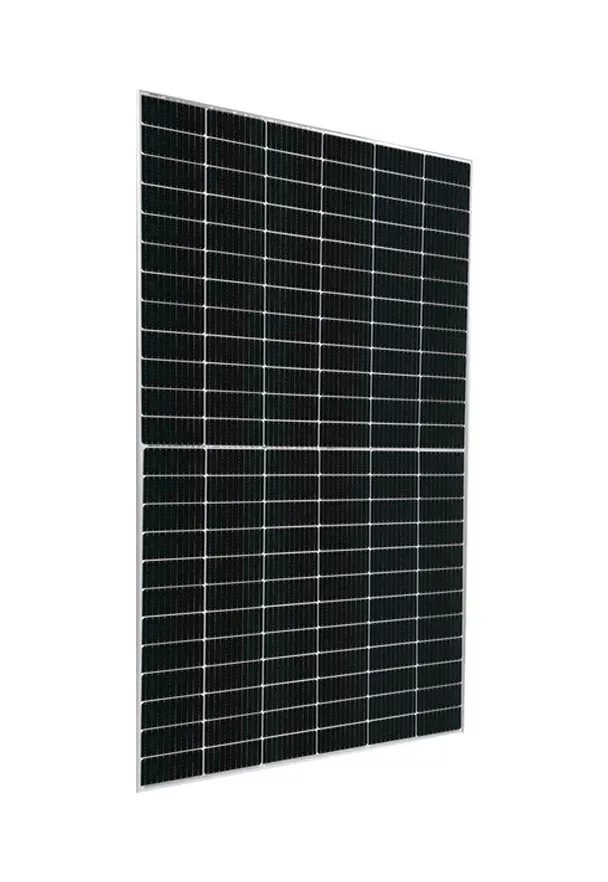

Risen Energy RSM96-11-450BNDG 450W N-Type TOPCon Bifacial Black Frame Solar Panel
The Risen Energy RSM96-11-450BNDG 450W solar panel is a high-performance bifacial N-type TOPCon photovoltaic module designed for residential and commercial solar PV systems. Engineered for maximum efficiency, long-term reliability, and enhanced energy yield, this module is an ideal solution for solar installers, solar wholesalers, and EPC companies seeking premium solar panels for modern energy systems.
With a nominal output of 450 W and a module efficiency of up to 23.0%, the RSM96-11 series is optimized for high energy production, making it a strong choice for complete solar kits and space-constrained rooftop installations.
Advanced N-Type TOPCon Cell Technology
The module utilizes cutting-edge N-type TOPCon solar cell technology, delivering superior performance compared to conventional P-type modules. N-type cells offer reduced degradation, improved temperature behavior, and higher resistance to light-induced degradation (LID) and potential-induced degradation (PID).
According to the datasheet, the module achieves a temperature coefficient of -0.29%/°C, ensuring stable performance even under high ambient temperatures. This results in higher annual energy yield and improved system efficiency in real-world operating conditions .
Bifacial Energy Generation for Increased Output
The RSM96-11-450BNDG features a bifacial glass-glass design, enabling energy generation from both the front and rear sides of the module. With a bifaciality factor of approximately 80%, the panel can capture reflected light from surfaces such as rooftops, ground installations, or reflective environments.
This additional rear-side gain can significantly increase total energy output, depending on installation conditions such as mounting height and surface reflectivity. As shown in the technical data table on page 2, rear-side gain can provide measurable increases in total equivalent power output.
High Efficiency and Positive Power Tolerance
The module offers a positive power tolerance of 0 to +3%, ensuring that installed panels meet or exceed their rated output. With efficiency reaching up to 23.0%, installers benefit from higher power density, allowing more energy generation per square meter.
This makes the panel particularly suitable for residential rooftops where available installation space is limited.
Robust Double-Glass Construction
The module features a durable double-glass structure with high-transmission, anti-reflective tempered glass on both sides. This enhances mechanical strength and improves resistance to environmental factors such as moisture, dust, and temperature fluctuations.
The panel includes 96 half-cut cells in a 6×16 configuration, improving electrical performance and reducing internal resistance losses. It is equipped with an IP68-rated junction box and high-quality connectors for reliable long-term operation.
With dimensions of 1762 × 1134 × 30 mm and a weight of approximately 21.5 kg, the module is designed for easy handling and installation.
Long-Term Warranty and Reliability
Risen Energy provides a 15-year product warranty and a 30-year linear performance warranty, with an annual degradation rate of just 0.4% after the first year. This ensures stable energy production over the system’s lifetime.
The module supports a maximum system voltage of 1500 V DC and can withstand mechanical loads of up to 5400 Pa (front) and 2400 Pa (rear), making it suitable for demanding environmental conditions.
Ideal Solution for High-Efficiency Solar Systems
The Risen RSM96-11-445BNDG 445W solar panel is an excellent choice for solar PV suppliers, solar distributors, and installers seeking high-efficiency, bifacial solar panels with strong performance, durability, and long-term reliability.
