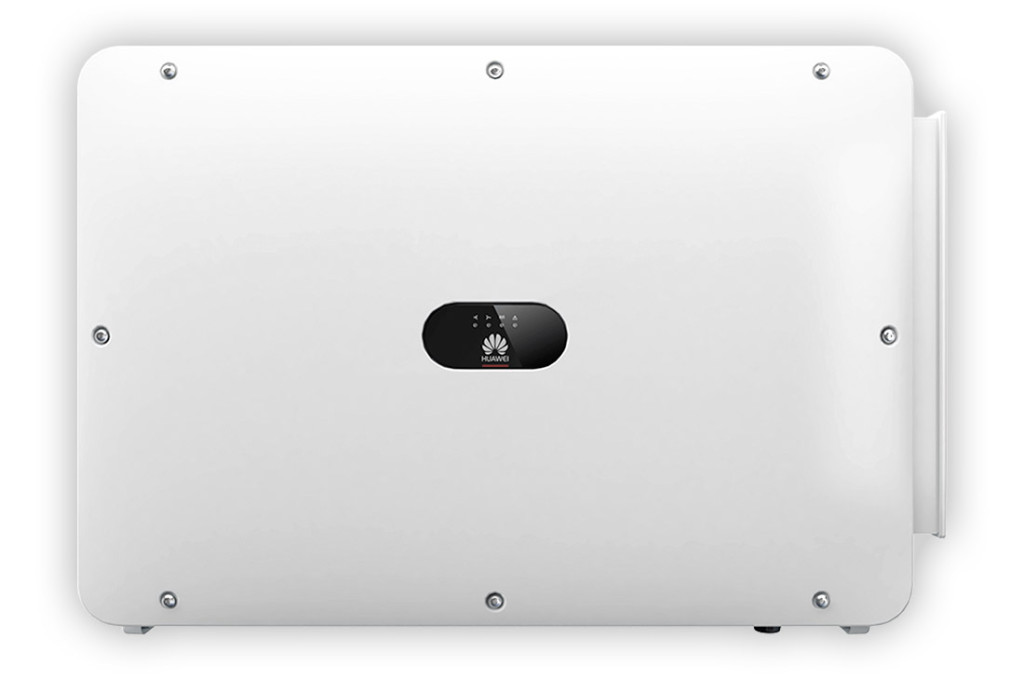

Huawei SUN2000-115KTL-M2 Smart PV Inverter – Utility-Scale Efficiency and Reliability
The Huawei SUN2000-115KTL-M2 is a high-performance three-phase string inverter engineered for large commercial rooftops and utility-scale solar PV installations. As part of Huawei’s Smart PV Controller series, it combines maximum efficiency, advanced safety, and intelligent monitoring into one robust solution. Designed for long-term reliability and seamless integration, this inverter sets a new benchmark for professional solar projects in Europe and beyond.
Maximum Efficiency and Power Output
- Max. efficiency up to 98.8% @480 V and 98.6% @400 V
- European weighted efficiency up to 98.6%
- Nominal AC power: 115 kW, with 125 kVA apparent power
- 10 MPPT trackers, 2 inputs per MPPT, 30 A input current
Intelligent String-Level Management
- Smart I-V Curve diagnosis for fault detection
- String-level monitoring for reduced O&M costs
- MBUS support for large-scale communication
Safety and Compliance
- Type II surge arresters for DC and AC
- Residual current monitoring, insulation detection
- Input-side disconnector and smart string disconnector
- Grid code compliance across Europe and international standards
Compact, Robust Design
- 93 kg, size 1,035 × 700 × 365 mm
- IP66 protection, suitable for harsh environments
- Smart air cooling, silent and reliable
- Nighttime consumption < 3.5 W
Communication and Monitoring
- LED indicators, RS485, USB
- FusionSolar app compatibility
- Optional 4G/WLAN dongle for flexible integration
Key Benefits: Highest efficiency, robust safety, multiple MPPTs, compact and reliable design, grid-compliant, installer-friendly.
