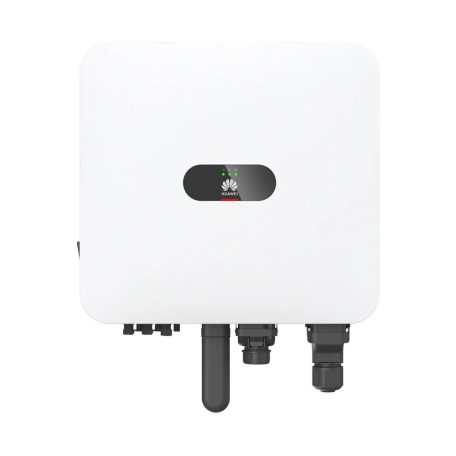

Huawei SUN2000 MAP0 Hybrid Inverter Series – Smart Energy Controller for Future-Ready PV Systems
The Huawei SUN2000-5/6/8/10/12K-MAP0 hybrid inverter series represents the next generation of smart energy controllers for residential and small commercial solar installations. Engineered with cutting-edge technology, this hybrid solution combines solar PV generation, energy storage, and grid interaction into one highly reliable unit, making it an ideal choice for professional solar installers, EPCs, and solar wholesalers seeking efficient, scalable, and future-ready solutions.
Outstanding Efficiency and Performance
- Max. efficiency up to 98.6%, European weighted efficiency 98.2%
- Output range: 5–12 kW
- Max. PV input power: up to 22,000 Wp
- Dual MPPT, 16 A per tracker
Hybrid Storage Integration
- Compatible with Huawei LUNA2000-S0 and S1 batteries
- Wide operating voltage: 600–980 V
- Charging up to 12,000 W, discharging up to 12,000 W
- Backup ready with SmartGuard-63A-T0
Safety and Protection
- AFCI & RSD with optimizers
- Connector temperature detection
- Surge, overcurrent, insulation, anti-islanding protection
- Compliant with EN/IEC62109, EN50549-1, G99, VDE4105, CEI 0-21
Asymmetric Load and Backup Power
- 100% three-phase asymmetric load
- Overload capacity up to 200% for 10s
- Switchover time ≤20 ms
Smart Design and Connectivity
- 21 kg, compact, IP66 enclosure
- Natural convection cooling, ≤29 dB noise
- Integrated WLAN, RS485, optional Ethernet/4G
- Monitoring via FusionSolar app
Why Choose Huawei SUN2000 MAP0?
High-efficiency hybrid inverter, seamless LUNA battery integration, whole-home backup option, compliance with European grid standards.
