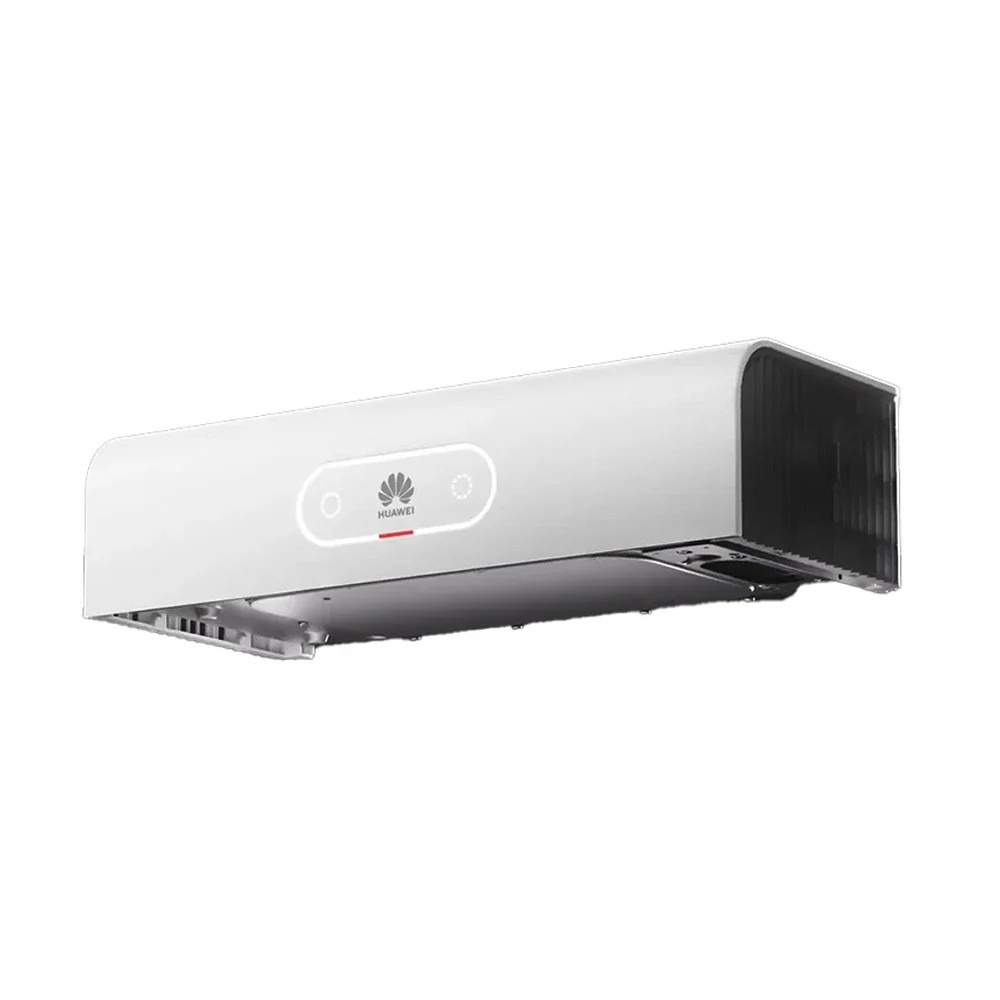

Huawei LUNA2000-10KW-C1 Power Module – Smart Energy Storage for Flexible PV Systems
The Huawei LUNA2000-10KW-C1 Power Module is a core component of the Huawei Smart String Energy Storage System, designed to deliver scalable, safe, and high-performance energy storage for both residential and small commercial photovoltaic applications. Combined with LUNA2000 battery modules, it provides a future-ready energy storage solution for professional solar installers and wholesalers looking for reliability and flexibility.
High Power and Flexible Scalability
The LUNA2000-10KW-C1 supports a maximum charging and discharging power of 10.5 kW when combined with three battery modules. It offers flexible scalability, with battery configurations starting from 6.9 kWh per module and expandable up to 20.7 kWh per group. For larger projects, up to four groups can be connected in parallel, delivering an impressive 82.8 kWh of total storage capacity.
Wide Operating Range and Compatibility
The power module supports both single-phase systems (350–560 V) and three-phase systems (600–980 V), allowing for seamless integration into different grid environments. It is compatible with multiple Huawei inverters, including SUN2000-M1, SUN2000-MAP0, and SUN5000-MB0 series.
Advanced Safety and Reliable Design
The system integrates a five-layer protection concept, covering cell-level, electrical-level, and structural-level safeguards. Key features include:
- Arc fault and ground-fault protection
- PID recovery function
- Residual current and insulation resistance monitoring
- Connector and terminal temperature detection
Built with Lithium Iron Phosphate (LiFePO4) technology, it ensures thermal stability, long service life, and 100% depth of discharge for maximum usable energy.
Installation and User Experience
The module is designed for installer efficiency, with cable-free connections between modules and floor-stand or wall-mount options. Quick commissioning reduces installation time, helping EPCs and installers save on labor costs.
Weighing just 10 kg, the power module is compact and easy to handle. It operates quietly (<29 dB) thanks to natural convection cooling and features IP66 protection, ensuring reliable outdoor and indoor use.
Certifications and Standards
The system complies with major international standards, including CE, VDE2510-50, IEC62619, IEC60730, UN38.3, ISO13849, REACH, and RoHS, guaranteeing safety and long-term project approval.
Key Advantages: scalability up to 82.8 kWh, high power output, wide voltage range, full safety suite, compact design, and compatibility with Huawei SUN2000 inverters.
