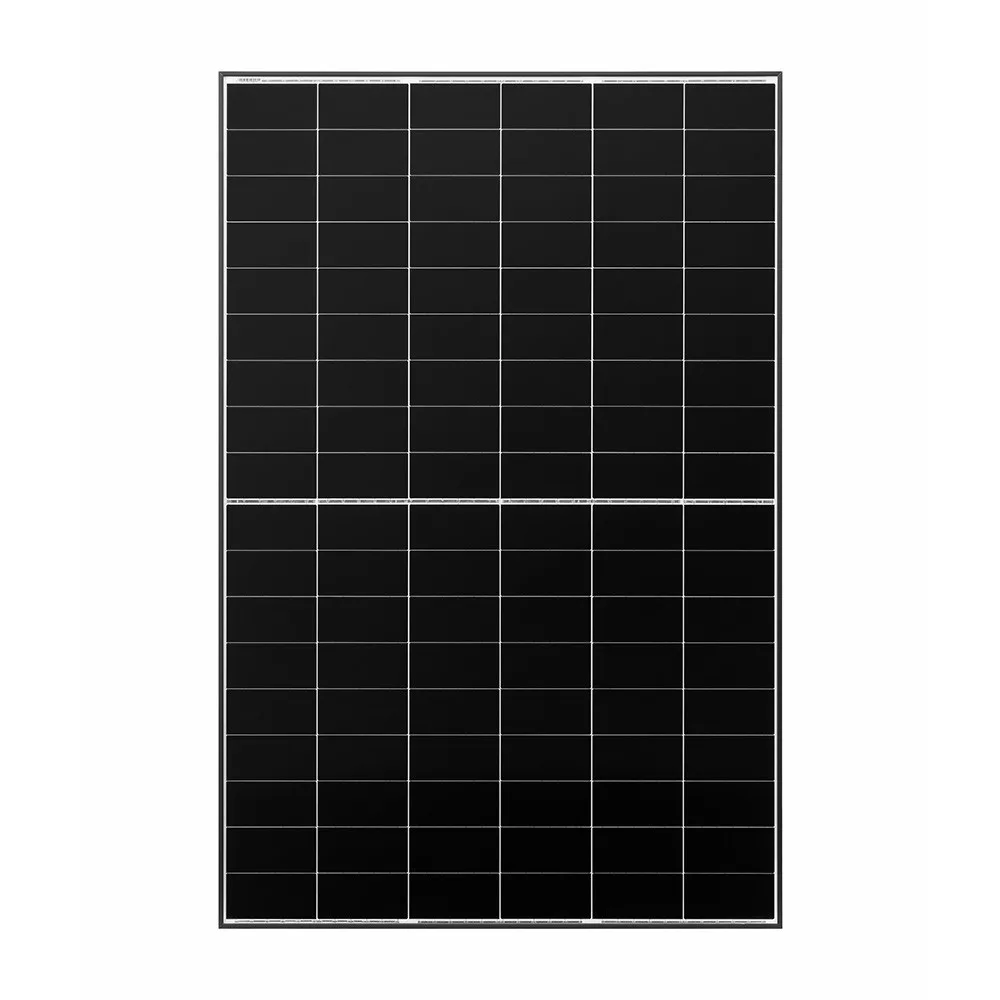

AIKO Neostar 1P A-MAH54Mw-450W Black Frame Solar Panel – High-Efficiency N-Type ABC Module for Modern PV Systems
The AIKO Neostar 1P A-MAH54Mw-450W Black Frame solar panel represents the next generation of high-efficiency photovoltaic technology. Built with advanced N-Type ABC (All Back Contact) cell architecture, this premium solar module delivers outstanding efficiency, superior long-term performance, and a refined aesthetic design. With a power output of 450 W and module efficiency reaching up to 23.8%, the Neostar series is designed to maximize energy yield in both residential and commercial solar installations.
Advanced N-Type ABC Cell Technology
The AIKO Neostar series utilizes cutting-edge N-Type ABC solar cell technology, which eliminates front-side grid lines and places all electrical contacts on the rear side of the module. This design improves light absorption across the entire cell surface, increasing efficiency and improving overall module performance. By reducing shading losses and improving current collection, the module delivers higher power output compared to conventional cell designs.
Another key advantage of N-type technology is its improved resistance to degradation and higher stability under long-term operation. The module demonstrates a first-year degradation rate of ≤1%, followed by a very low annual degradation rate of ≤0.35% from year two to year thirty, ensuring consistent power generation throughout its lifetime.
Outstanding Efficiency and Energy Yield
With an efficiency of up to 23.8%, the AIKO Neostar A-MAH54Mw module is among the most efficient residential solar panels available. The module is designed to operate efficiently even in challenging environmental conditions thanks to its excellent temperature coefficient of –0.26% per °C. This means the panel maintains higher performance during hot summer conditions compared with many standard photovoltaic modules.
Higher efficiency also contributes to a more optimized Balance of System (BOS). Because fewer modules are required to achieve the same system capacity, installers benefit from reduced mounting structures, shorter cabling runs, and lower installation costs. This makes the Neostar series particularly attractive for rooftop installations where space is limited.
Robust Mechanical Construction
The AIKO A-MAH54Mw solar panel features a strong mono-glass construction with 3.2 mm tempered glass, designed for durability and long-term reliability. The black anodized aluminum frame enhances structural stability while providing a modern all-black appearance that integrates seamlessly into architectural solar installations.
The module contains 108 half-cut cells arranged in a 6 × 18 configuration and includes a high-quality IP68-rated junction box with three bypass diodes. These components ensure safe operation and improved performance under partial shading conditions.
With dimensions of 1722 × 1134 × 30 mm and a weight of approximately 20.5 kg, the module offers an excellent balance between size, performance, and ease of installation.
High Reliability and Long-Term Warranty
The AIKO Neostar series is manufactured under strict international quality standards including IEC 61215 and IEC 61730 certification. The module supports a maximum system voltage of 1500 V DC, making it suitable for large residential arrays and commercial photovoltaic systems.
To ensure long-term reliability, AIKO provides a 15-year product warranty and a 30-year linear performance warranty, guaranteeing stable power output over decades of operation.
The AIKO Neostar 1P A-MAH54Mw-450W Black Frame solar panel is a premium solution for installers, solar distributors, and EPC companies seeking high-efficiency photovoltaic modules with excellent durability, performance stability, and modern design.
